Quick Action Marine Watertight Steel Door
Description:
Marine Handwheel Watertight Steel Door is a kind of quick action door with a handwheel. It can be made of steel or aluminum. All of our products are eligible. We can provide various certificates, such as CCS, NK, ABS, RINA, IRS. As clients' requirements. It is employed to superstructure above freeboard deck and deck house. The products are produced with high quality to in keeping with ISO6042-1980 standard.
Main Technical Specifications:
1. Standard: CB 672, GB 10840,CB/T 3007 CB 3041,ISO Standard
2. Material: Mild Steel, Stainless Steel, Aluminium,
3. Test: Fire Approval Test, Gas Tightness Test, Hydraulic Pressure Test, Hose Test, Air Test, Chalk Test, as applicable
4. Dimension: Customized, As client’s drawing, As Standard
5. Application Type: Watertight, Weathertight, Gastight, Sound Proof, Fire Proof ( C to A60 Class), as applicable
6. Leaf Type: Single Leaf, Double Leaf, Single Skin, Double Skin,
7. Application Location: Accommodation, Cargo Hold, Bulkhead, Boundary
8. Open Type: Sliding, Hinged, Hand Wheel Quick Operate, Lever Operate, Dog Handle, etc.
9. Power resource: Pneumatic, Electric, Hydraulic, Manual,
10. Closing Device: Anti-Piracy
11. Classification Certificates:Type Approval, EC MED Type Approval, CCS, NK, BV, ABS, DNV GL, LR, KR, IRS, RS, Etc.
Main Technical Parameters:
Clear Size
B×L | Cutout in Steel Wall
B1×L1 | Size of Frame
B2×L2 |
| 600x1600 | 700x1700 | 800x1800 |
| 800x1800 | 900x1900 | 1000x2000 |
| 1000x2000 | 1100x2100 | 1200x2200 |
| 1200x2000 | 1200x2100 | 1400x2200 |
| 1200x2100 | 1300x2200 | 1400x2300 |
Range of products (not limited to):
1. H ydraulic Watertight Sliding Door (Low Sill)
2. Flush Watertight Door CB672-76
3. Hydraulic Watertight Hinged Door
4. Quick Action High Pressure Door
5. High Pressure Watertight Door
6. Hydraulic Hinged Watertight Steel boor (Crew Door)
7. Hydraulic Hinged Weathertight Steel Door (Passenger Door)
8. Watertight Bulkhead Door
9. Quick Action Watertight Steel Door
10. Quick Action Weathertight Steel Door
11. Single Handle Watertight Steel Door
12. Hydraulic Watertight Sliding Door CB/T3007-2000
13. Hydraulic Double-leaf Watertight Hinged Door
14. Pilot Watertight Door,
15. Ship Side Door

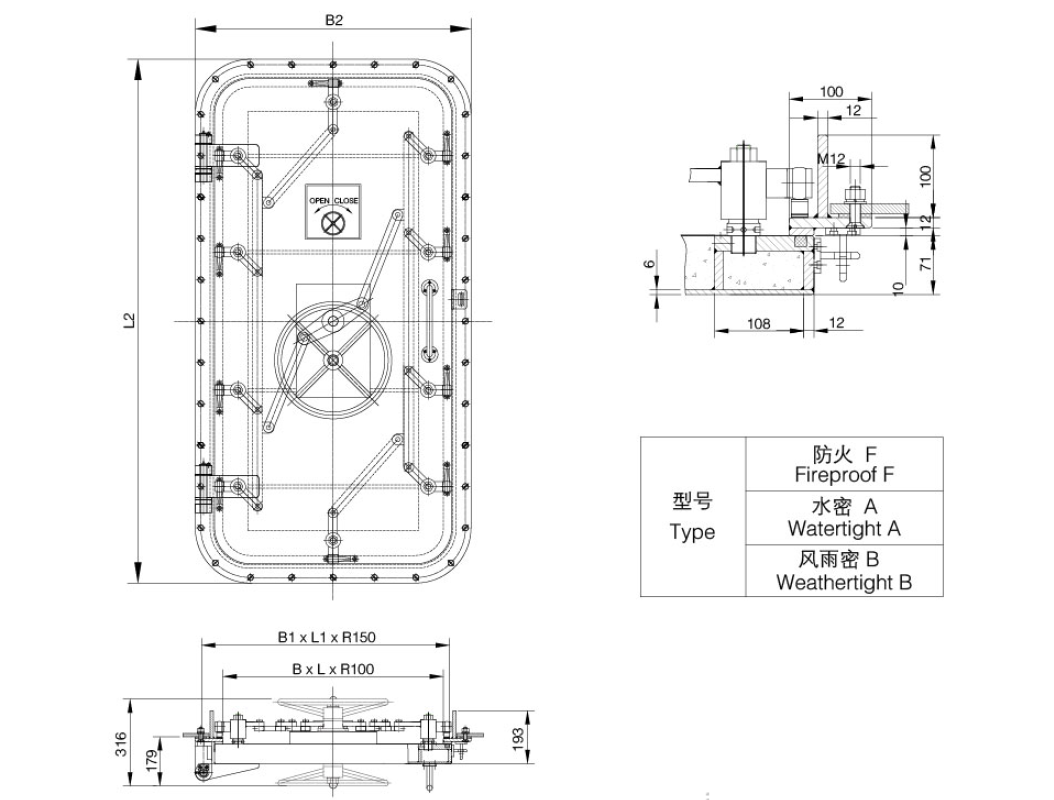

Drawing of Quick Action Marine Watertight Steel Door Marine Outfitting
